:: Camera Lens

Telecentric lens, zoom lens, extension rings, extender and other lens accessories are available.

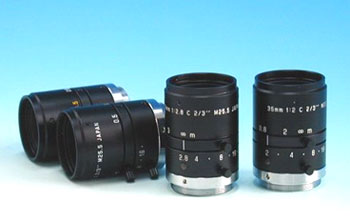

::: Fixed Focal High Resolution Lenses for Machine Vision


SS Series (Single locking screw type)

KV1614SS
KV2514SS
KV3520SS
KV5028SS
KV614SS
Image Format
2/3"
2/3"
2/3"
2/3"
1/2"
Focal Length
16mm
25mm
35mm
50mm
6mm
Max. Aperture
F1.4
F1.4
F2.0
F2.8
F1.4
Angular View on 2/3"
H:30.9 x V:23.2
H:20.1 x V:15.1
H:14.33 x V:10.45
H:9.98 x V:7.49
H:57.4 x V:44.3
Min. Object Distance
0.25m
0.25m
0.25m
0.5m
0.2m
TV Distortion
-0.3%
-0.3%
-0.02%
-0.20%
-0.96%
Back focus
12.78mm
13.13mm
18.06mm
21.1mm
12.32mm
Lens Mount
C-Mount
C-Mount
C-Mount
C-Mount
C-Mount
Filter Screw
M25.5 P=0.5
M25.5 P=0.5
M25.5 P=0.5
M25.5 P=0.5
M30 P=0.5
Dimensions
(Dia.x L)
29.0 x 31.5mm
29.0 x 31.5mm
29.0 x 38.5mm
29.0 x 38.5mm
32.0 x 37.5mm
Weight (approx.)
45g
45g
55g
55g
50g

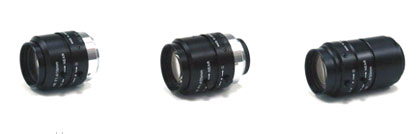

::: Super High Resolution Lenses For Megapixels Camera

LV1614
LV2514
LV5028
2/3" Image Format
Image Size: 8.8mm x 6.6mm
MOD(Minimum Object Distance): 0.2m
f = 16mm
f=25mm
f=50mm
F=1:1.4
F=1:1.4
F = 1:2.8
View Angle on 2/3" CCD:
View Angle on 2/3" CCD:
View Angle on 2/3" CCD:
Horizontal
30.0'
Horizontal
19.6'
Horizontal
9.6'
Vertical
22.7'
Vertical
14.8'
Vertical
7.2'
Diameter
37.0'
Diameter
24.3'
Diameter
11.9'
Object Size at M.O.D
Object Size at M.O.D
Object Size at M.O.D
Horizontal
112.8mm
Horizontal
71.1mm
Horizontal
29.3mm
Vertical
84.4mm
Vertical
53.3mm
Vertical
21.9mm
Diameter
141.2mm
Diameter
89.0mm
Diameter
36.6mm
Back Focus
13.1mm
Back Focus
11.1mm
Back Focus
35.5mm
Filter Screw:
M27.0 P=0.5
Filter Screw:
M27.0 P=0.5
Filter Screw:
M25.5 P=0.5
C-Mount
Flange Back: 17.526mm
Dimension: 33 x 36.5mm
Dimension: 33 x 39.5mm
Dimension: 34 x 55mm
Weight: 81g
Weight: 89g
Weight: 92g
